cnc lathe with live tooling
CNC lathes with movable tooling are highly flexible and adaptable machine tools....
CNC lathes with movable tooling are highly flexible and adaptable machine tools. The characteristic of this CNC lathe is that its tooling part is movable and can be quickly replaced and adjusted according to different processing needs, thereby realizing the processing of different workpieces.
The design of the movable tooling enables CNC lathes to easily handle a variety of complex processing tasks, improving production efficiency and flexibility. By changing tooling, CNC lathes can adapt to workpieces of different sizes, shapes and materials, achieving a multi-purpose machine.
In addition, CNC lathes with movable tooling are usually equipped with advanced CNC systems that can achieve high-precision, high-speed processing. The CNC system ensures the stability and accuracy of the machining process by accurately controlling various parameters of the machine tool, such as feed speed, spindle speed, etc.
In practical applications, CNC lathes with movable tooling are widely used in various manufacturing fields, such as automobile manufacturing, aerospace, mold manufacturing, etc. They can meet the processing needs of complex parts, improve production efficiency, reduce production costs, and create greater economic benefits for enterprises.
In general, the CNC lathe with movable tooling is an efficient, flexible and precise machine tool equipment that can meet the needs of modern manufacturing industry for efficient and high-quality processing.

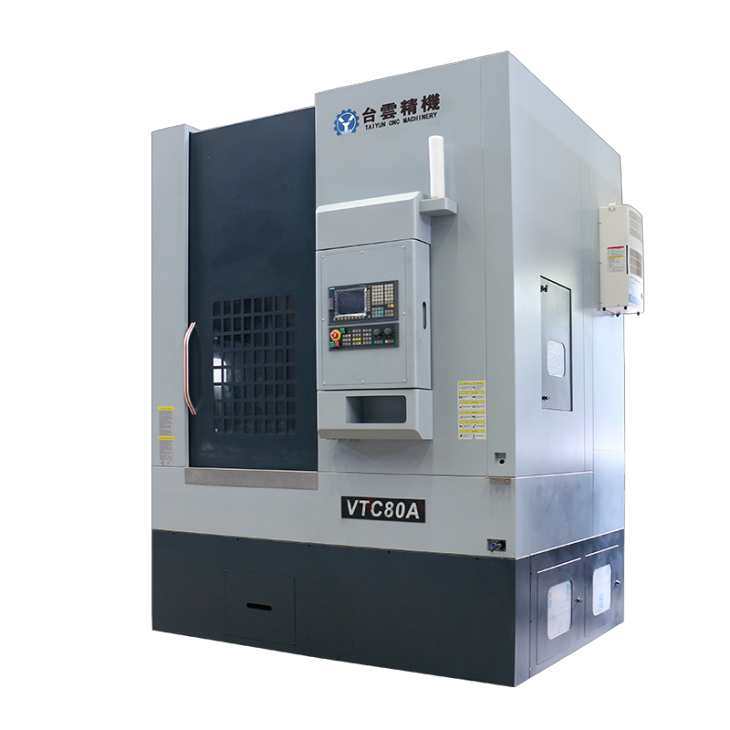

Specification | unit | VTC80A | Specification | unit | VTC80A |
X axis | mm | 670 | Turret station | Four stations/eight stations | |
Z axis | mm | 200-1050 | X-axis rolling linear guide | 2 pieces, width 45mm | |
Maximum turning diameter | mm | Φ1000 | Z axis rolling linear guide | 2 pieces, width 55mm | |
turning diameter | mm | Φ800 | cooling motor | W | 450+750 |
turning height | mm | 850 | Pump output | m³/h | 4m³/h |
Spindle speed | rpm | 100-800 | Repeatability | mm | ±0.005 |
Spindle motor power | Kw | 22 | positioning accuracy | mm | ±0.008 |
Spindle diameter | mm | Φ180 | smallest positioning unit | mm | 0.001 |
Chuck model | hydraulic chuck | Dimensions (approx.) | mm | 2400*2100*3600mm | |
diameter | inch | 24″ | Gross weight (approx.) | kg | 9000 |
