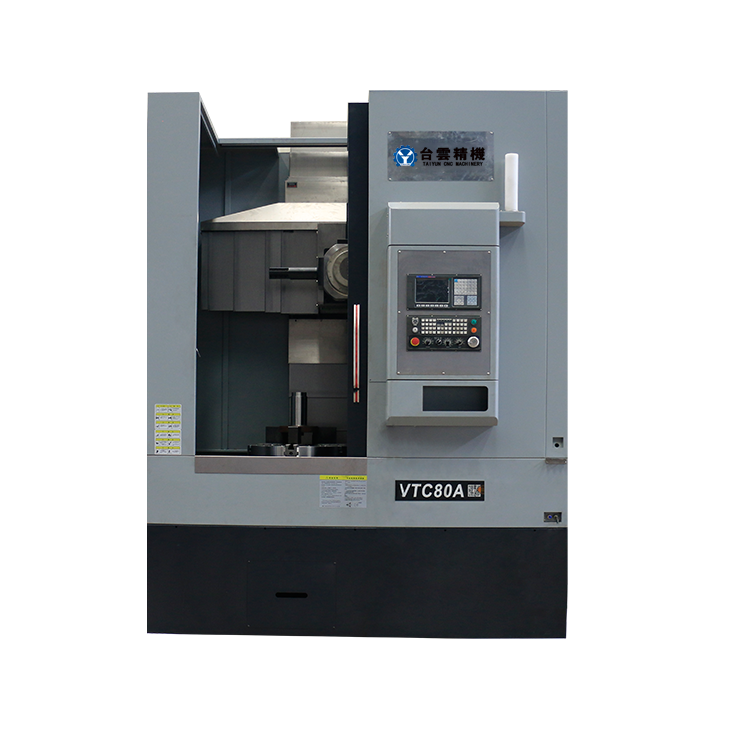

CNC vertical lathe for automobile flywheel
The CNC vertical lathe for automobile flywheel is a CNC machine tool designed for automobile flywheel processing....
The CNC vertical lathe for automobile flywheel is a CNC machine tool designed for automobile flywheel processing. This machine tool has the characteristics of high precision, high efficiency and high automation, and can meet various needs of automobile flywheel processing. The following is a detailed introduction to the CNC vertical lathe for automobile flywheel:
1. Precision: The CNC vertical lathe for automobile flywheel usually adopts advanced CNC system and precise transmission mechanism, which can achieve micron-level processing accuracy and ensure the quality and performance of the flywheel.
2. Processing capacity: The CNC vertical lathe for automobile flywheel can process automobile flywheels of various specifications and shapes, including flywheels with irregular shapes such as round and oval. At the same time, the CNC vertical lathe for automobile flywheel can also perform composite processing of multiple processes, such as milling, drilling, tapping, etc., which greatly improves the processing efficiency.
3. Automation degree: The CNC vertical lathe for automobile flywheel usually adopts a fully automated operation mode, and the automatic operation of the machine tool is controlled by programming, which reduces manual intervention and errors, and improves the processing quality and stability.
4. Reliability: Since the CNC vertical lathe for automobile flywheel adopts high-quality parts and advanced manufacturing technology, it has high reliability and stability. At the same time, it is also equipped with a complete safety protection system to ensure the safety of the operator.
When using the CNC vertical lathe for automobile flywheel, you need to pay attention to the following points:
1. The operator of the CNC vertical lathe for automobile flywheel should be familiar with the operating procedures and safety precautions of the machine tool, and can only operate after professional training.
2. During the processing of the CNC vertical lathe for automobile flywheel, the operating status of the machine tool should be observed at any time, and the machine should be stopped and checked in time if any abnormal situation is found.
3. Regularly maintain and maintain the CNC vertical lathe for automobile flywheel to ensure the normal operation of the machine tool and extend its service life.
In short, the CNC vertical lathe for automobile flywheel is an efficient and high-precision processing equipment, which is of great significance to improving the quality and processing efficiency of automobile flywheels.
Specification | unit | VTC80A | Specification | unit | VTC80A |
X axis | mm | 670 | Turret station | Four stations/eight stations | |
Z axis | mm | 200-1050 | X-axis rolling linear guide | 2 pieces, width 45mm | |
Maximum turning diameter | mm | Φ1000 | Z axis rolling linear guide | 2 pieces, width 55mm | |
turning diameter | mm | Φ800 | cooling motor | W | 450+750 |
turning height | mm | 850 | Pump output | m³/h | 4m³/h |
Spindle speed | rpm | 100-800 | Repeatability | mm | ±0.005 |
Spindle motor power | Kw | 22 | positioning accuracy | mm | ±0.008 |
Spindle diameter | mm | Φ180 | smallest positioning unit | mm | 0.001 |
Chuck model | hydraulic chuck | Dimensions (approx.) | mm | 2400*2100*3600mm | |
diameter | inch | 24″ | Gross weight (approx.) | kg | 9000 |
