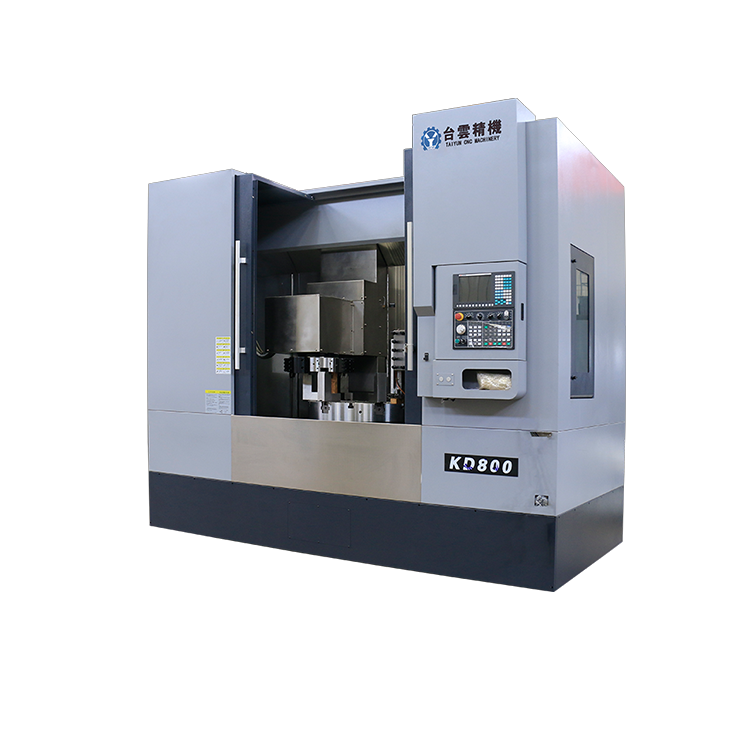

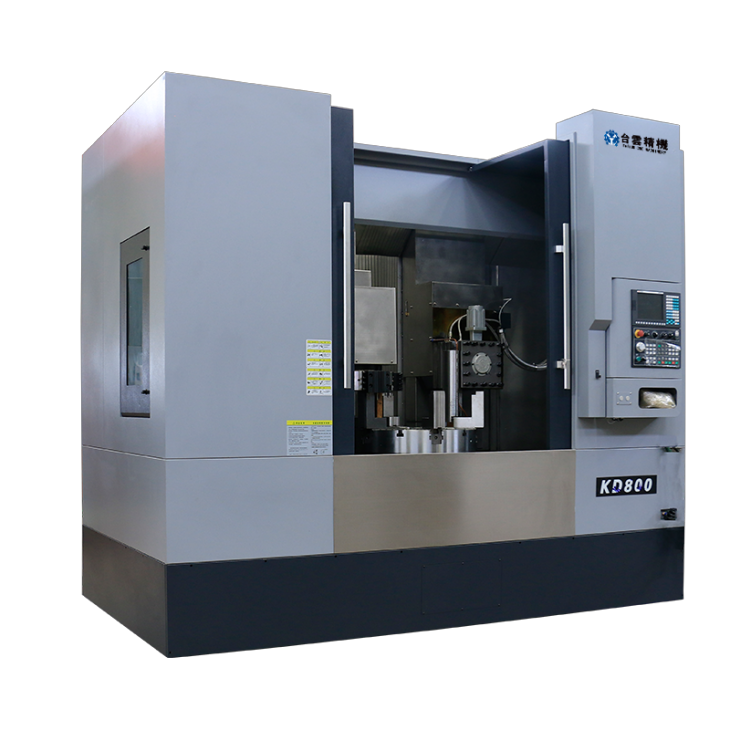

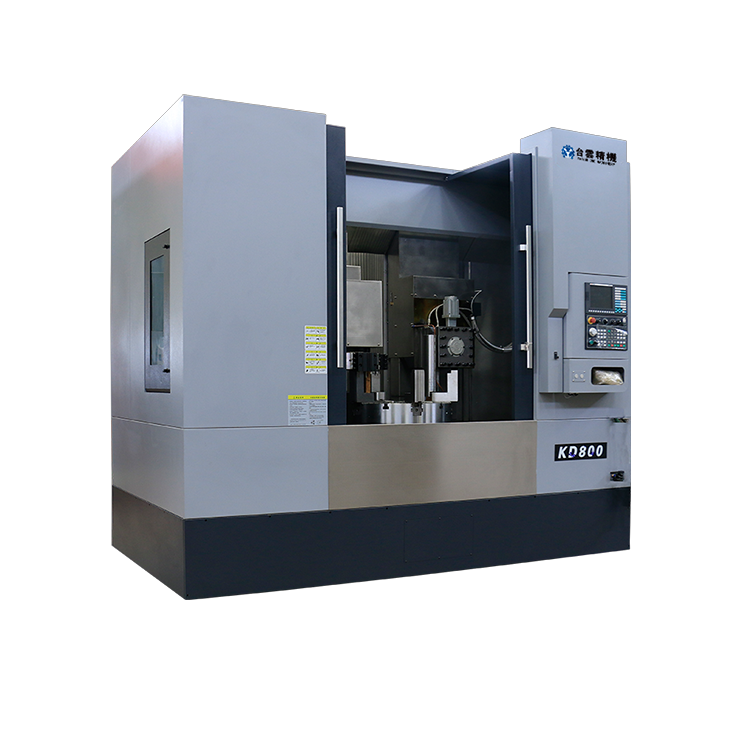

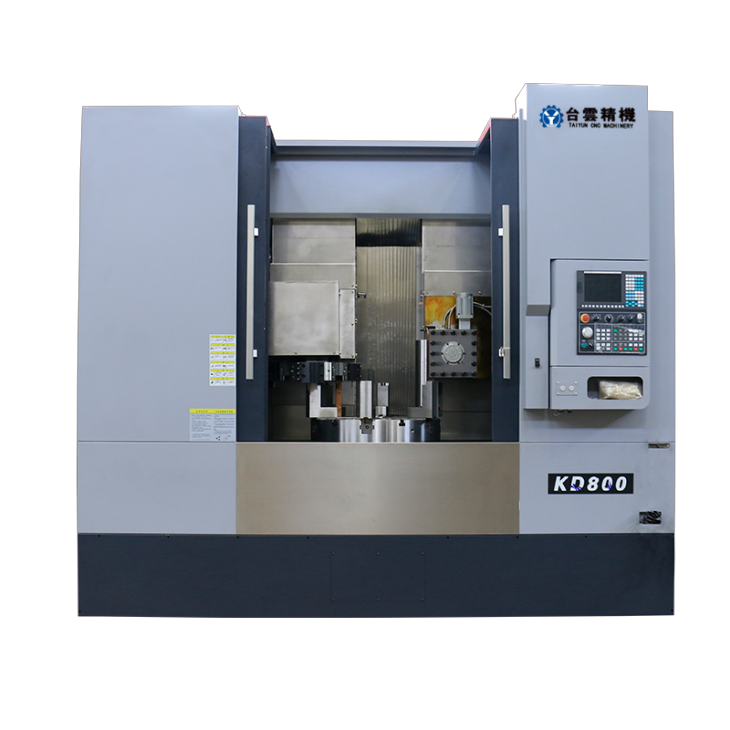

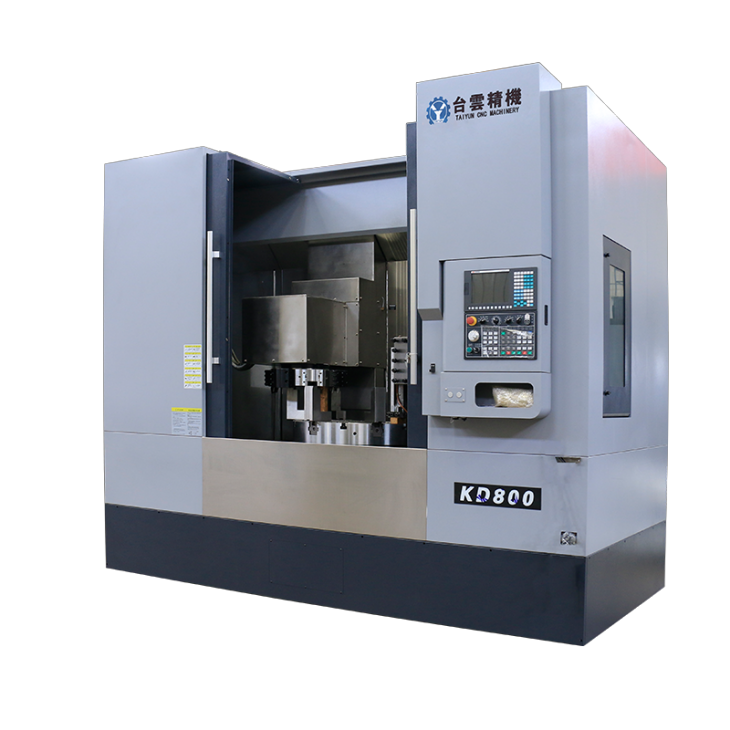

The eight-station tool holder brake disc CNC vertical lathe is a high-performance, multi-functional brake disc turning equipment, which is controlled by a CNC system and has the characteristics of high efficiency and precision. The following are some detailed information about the eight-station tool holder brake disc CNC vertical lathe:

1. Structural features:

Bed: The eight-station tool holder brake disc CNC vertical lathe adopts a thermally symmetrical box-type ribbed cast iron structure made of HT300 gray cast iron, which helps to reduce thermal deformation and provide strong support during heavy cutting. Spindle bearing: The eight-station tool holder brake disc CNC vertical lathe adopts high-precision P4 grade spindle bearings, which are arranged with a large span with two-point support to ensure stable accuracy and reliability during long-term processing. Tool holder: It is equipped with an imported high-rigidity eight-station hydraulic tool holder, which has the advantages of high reliability, fast tool change speed, and precise positioning. Lubrication system: The eight-station tool holder brake disc CNC vertical lathe adopts an automatic decompression lubrication system, which centrally supplies oil to ensure that each lubrication point receives timely and appropriate lubricating oil, so that the equipment can operate for a long time without worries.

2. Functional features:

Dual-channel system control: The eight-station tool holder brake disc CNC vertical lathe has two completely independent sets of turrets, which can realize two tools to process different trajectories at the same time, improving processing efficiency.

Automation design: The eight-station tool holder brake disc CNC vertical lathe is equipped with a robot to automatically load and unload materials, which greatly reduces labor intensity, reduces the number of operators, and reduces comprehensive costs.

Processing quality: Due to the implementation of standardized operations, the processing quality of the product has been improved, so that the equipment has the ability to undertake high-end product OEM.

Processing range: The eight-station tool holder brake disc CNC vertical lathe is suitable for processing various discs, hubs, flanges, engine end covers and other parts with large batches, high processing accuracy and high dimensional consistency requirements.

3. Processing principle:

The eight-station tool holder brake disc CNC vertical lathe is mainly composed of a bed, a feed screw, a guide rail, a slide, a turning spindle, a processing workpiece, a turning tool holder and other parts.

Equipped with a high-automatic loading and unloading logistics mechanism across the machine tool, it can realize fully automatic production and complete the turning of two sides at one time.

The eight-station tool holder brake disc CNC vertical lathe can achieve a high level of processing accuracy, meeting the processing needs of the automotive and spare parts industry for brake drums, brake discs, wheel bodies and other disc parts. In general, the eight-station tool holder brake disc CNC vertical lathe is an efficient and precise brake disc turning equipment with broad application prospects and market demand.
