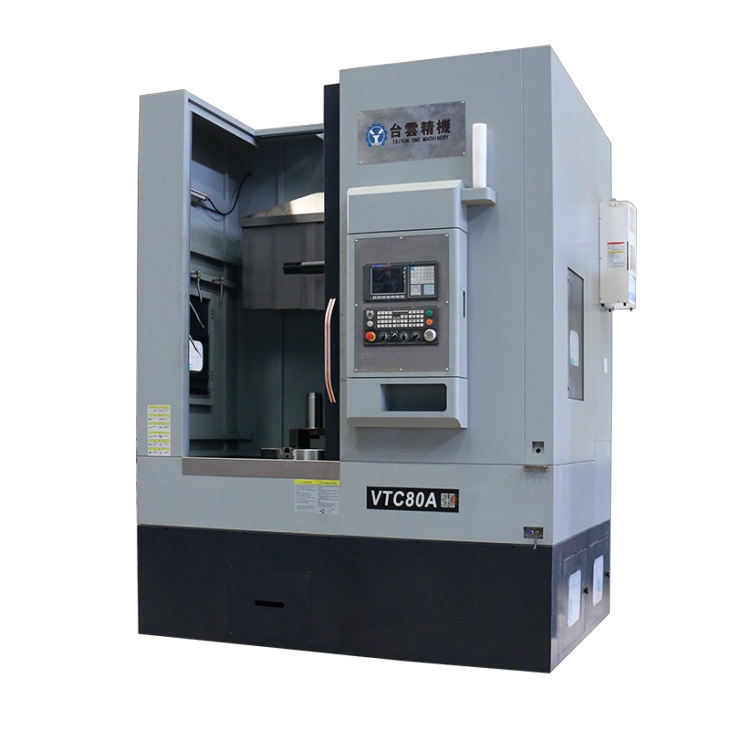

High-speed desktop vertical lathe
The high-speed benchtop vertical lathe is a vertical lathe with high-speed cutting capabilities, which is especially suitable for high-precision and high-efficiency machining....
The high-speed benchtop vertical lathe is a vertical lathe with high-speed cutting capabilities, which is especially suitable for high-precision and high-efficiency machining. This machine tool combines the stability of a vertical lathe with the convenience of a desktop lathe, while incorporating high-speed cutting technology to meet the high-efficiency, high-precision processing needs of modern manufacturing.
The main features of high-speed benchtop vertical lathes include:
1. High-speed cutting capability: The high-speed benchtop vertical lathe achieves high rotational speed and high feed speed by optimizing the spindle design and adopting advanced drive technology, thereby improving cutting efficiency and shortening the machining cycle.
2. High-precision processing: The high-speed desktop vertical lathe uses precision guide rails, bearings and transmission systems to ensure that the machine tool can maintain stable processing accuracy even when operating at high speed. At the same time, it is equipped with advanced CNC system and automatic compensation function to further improve processing accuracy and stability.
3. Rigid structure: The high-speed benchtop vertical lathe adopts a rigid structural design as a whole, which can withstand the impact and vibration generated during high-speed cutting, ensuring the stability of the processing process and the quality of the workpiece.
4. Convenient operation: The high-speed desktop vertical lathe design makes the machine tool occupy a small area and is easy to move and install. At the same time, it is equipped with a humanized operation interface and an intelligent control system, making the operation simpler and more intuitive.
5. Wide range of applications: The high-speed benchtop vertical lathe is suitable for processing various disc and shaft parts, and is especially suitable for processing metal materials that require high-speed cutting, such as aluminum alloys, stainless steel, etc.
It should be noted that high-speed benchtop vertical lathes require regular maintenance and upkeep during use to ensure the stability and processing accuracy of the machine tool. In addition, when selecting machine tools, comprehensive considerations should be made based on specific processing needs and conditions, and appropriate models and configurations should be selected.
In general, the high-speed desktop vertical lathe is an efficient and high-precision processing equipment that can meet the needs of modern manufacturing industry for high-precision and high-efficiency processing. With the continuous advancement of technology and the continuous development of the market, high-speed desktop vertical lathes will play a greater role in the future.
Specification | unit | VTC80A | Specification | unit | VTC80A |
X axis | mm | 670 | Turret station | Four stations/eight stations | |
Z axis | mm | 200-1050 | X-axis rolling linear guide | 2 pieces, width 45mm | |
Maximum turning diameter | mm | Φ1000 | Z axis rolling linear guide | 2 pieces, width 55mm | |
turning diameter | mm | Φ800 | cooling motor | W | 450+750 |
turning height | mm | 850 | Pump output | m³/h | 4m³/h |
Spindle speed | rpm | 100-800 | Repeatability | mm | ±0.005 |
Spindle motor power | Kw | 22 | positioning accuracy | mm | ±0.008 |
Spindle diameter | mm | Φ180 | smallest positioning unit | mm | 0.001 |
Chuck model | hydraulic chuck | Dimensions (approx.) | mm | 2400*2100*3600mm | |
diameter | inch | 24″ | Gross weight (approx.) | kg | 9000 |
