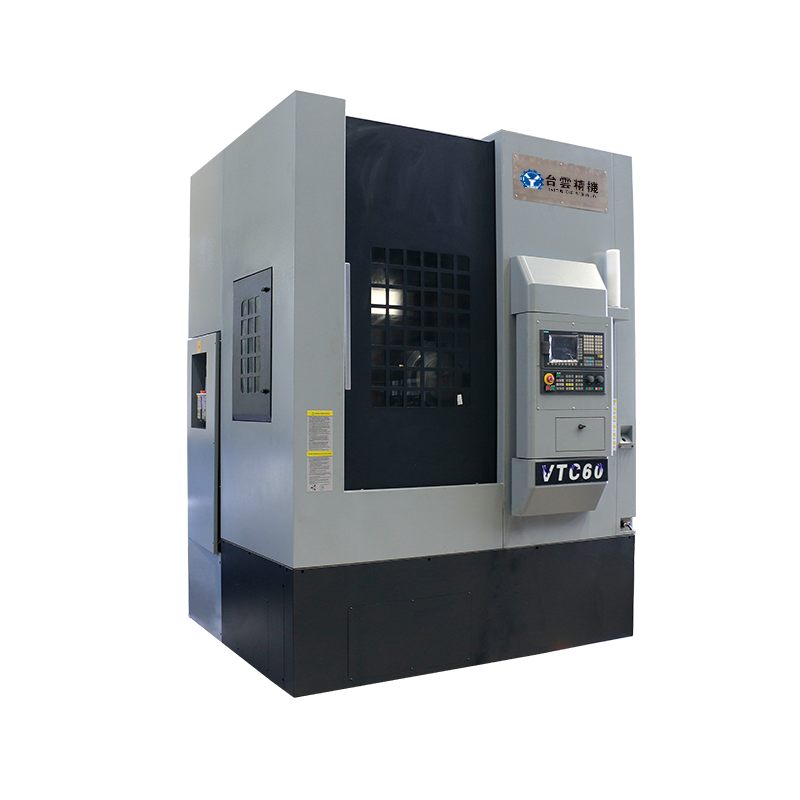

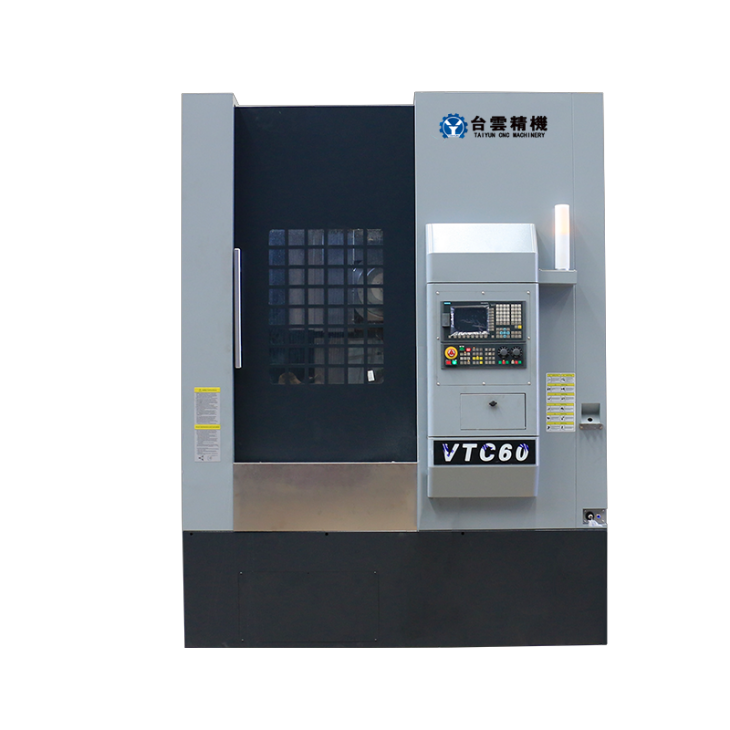

Hot selling CNC vertical lathe
CNC vertical lathe is an efficient and high-precision metal cutting machine tool that is widely used in machinery manufacturing, automobiles, aerospace, energy and other fields....
CNC vertical lathe is an efficient and high-precision metal cutting machine tool that is widely used in machinery manufacturing, automobiles, aerospace, energy and other fields.
The main features of CNC vertical lathes include:
1. High precision: CNC vertical lathe adopts advanced CNC system and servo control technology to achieve high-precision and high-efficiency metal cutting processing.
2. High efficiency: CNC vertical lathes have functions such as multi-axis linkage and quick tool change, which can achieve efficient automated processing and improve production efficiency.
3. Good stability: The CNC vertical lathe adopts advanced structural design and manufacturing technology. The CNC vertical lathe has high rigidity and stability, which can ensure the stability and accuracy of the processing process.
4. Wide range of processing: CNC vertical lathes are suitable for processing workpieces of various shapes and sizes, including discs, shafts, sleeves, etc., and can meet the processing needs of different fields.
This kind of CNC vertical lathe can meet the actual needs of users, so it is widely welcomed and recognized. It should be noted that the choice of CNC vertical lathe needs to be comprehensively considered based on specific processing needs, workpiece materials, processing accuracy and other factors to ensure that the most suitable CNC vertical lathe is selected.
Specification | unit | VTC70 | Specification | unit | VTC70 |
X axis | mm | 700 | Turret station | Four stations/eight stations | |
Z axis | mm | 130-830 | X-axis rolling linear guide | 2 pieces, width 45mm | |
Maximum turning diameter | mm | Φ800 | Z axis rolling linear guide | 2 pieces, width 55mm | |
turning diameter | mm | Φ700 | cooling motor | W | 450+750 |
turning height | mm | 700 | Pump output | m³/h | 4m³/h |
Spindle speed | rpm | 100-800 | Repeatability | mm | ±0.003 |
Spindle motor power | Kw | 22 | positioning accuracy | mm | ±0.006 |
Spindle diameter | mm | Φ160 | smallest positioning unit | mm | 0.001 |
Chuck model | hydraulic chuck | Dimensions (approx.) | mm | 2400*1800*3200mm | |
diameter | inch | 21″ | Gross weight (approx.) | kg | 8000 |
