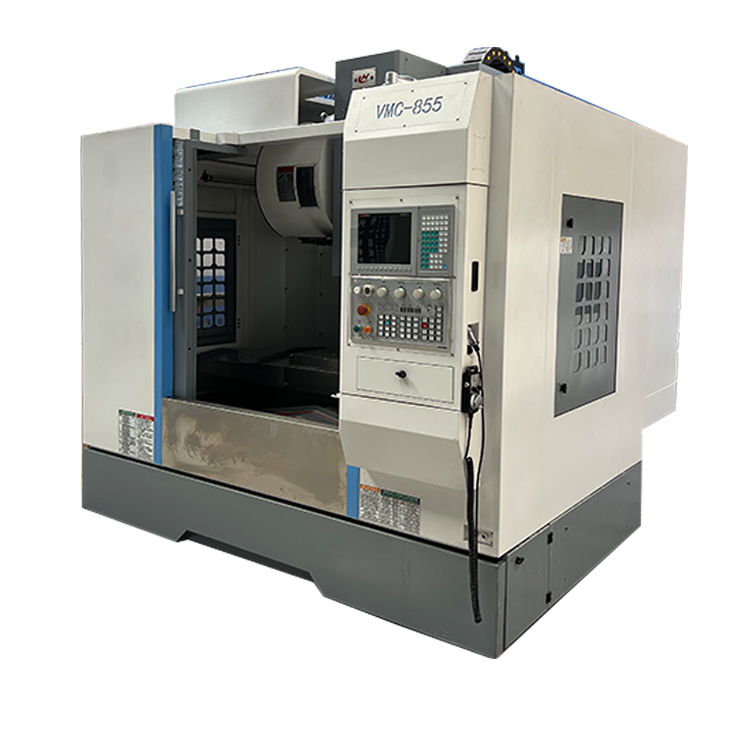

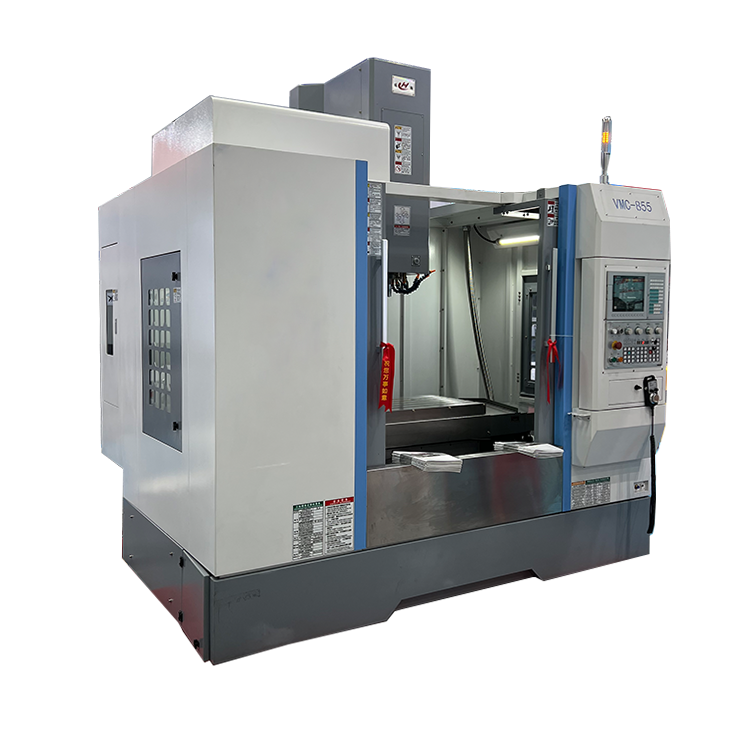

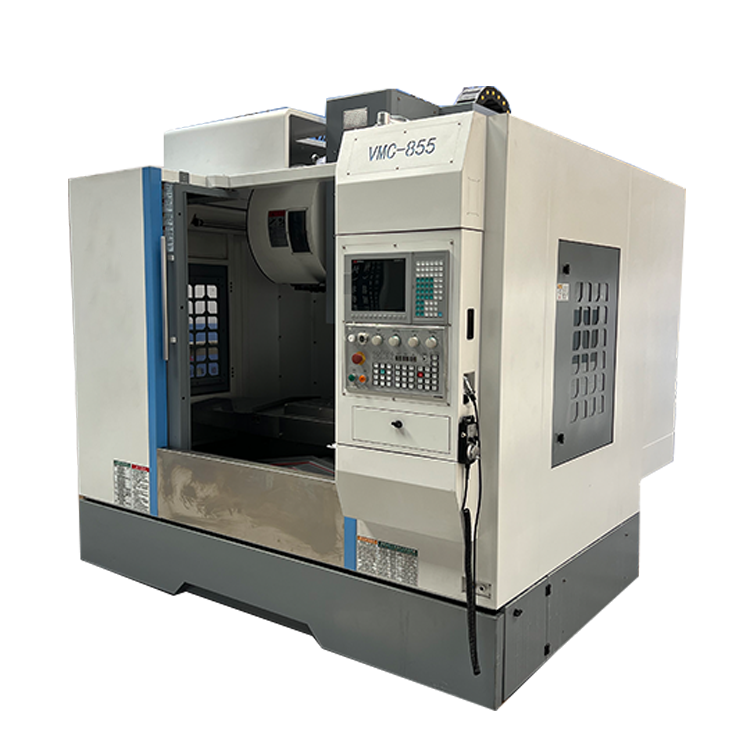

Efficient processing CNC milling machine
Efficient processing CNC milling machine is a CNC machine tool with high-precision and high-efficiency processing capabilities....
Efficient processing CNC milling machine is a CNC machine tool with high-precision and high-efficiency processing capabilities. Efficient processing CNC milling machine adopts advanced CNC technology and realizes precise processing operations through computer control system, which can greatly improve production efficiency and processing quality.
The characteristics of Efficient processing CNC milling machine include:
1. High-speed cutting capability: Efficient processing CNC milling machine adopts high-speed spindle and efficient cutting tool, which can achieve high-speed cutting and improve processing efficiency.
2. High-precision processing: Efficient processing CNC milling machine can realize precise processing positioning and control through computer control system, ensuring processing accuracy and processing quality.
3. Wide processing range: Efficient processing CNC milling machine can process various complex shapes of workpieces, including planes, curved surfaces, grooves, etc., to meet different processing needs.
4. High degree of automation: Efficient processing CNC milling machine has a high degree of automation, which can automatically complete the clamping, positioning, processing and detection of workpieces, reduce manual intervention and improve production efficiency.
5. Intelligent control: Efficient processing CNC milling machine is equipped with advanced numerical control system and intelligent control software, which can realize real-time monitoring and adjustment of the processing process to ensure the stability and reliability of the processing process.
The application field of Efficient processing CNC milling machine is very wide, including aerospace, automobile manufacturing, mold processing, precision machinery and other fields. In the field of aerospace, Efficient processing CNC milling machine can process high-precision aircraft parts and engine parts; in the field of automobile manufacturing, Efficient processing CNC milling machine can process various automotive parts, such as engine cylinder block, cylinder head, crankshaft, etc.; in the field of mold processing, Efficient processing CNC milling machine can process various complex mold parts, such as plastic molds, die-casting molds, etc.
In short, Efficient processing CNC milling machine is one of the indispensable and important equipment in modern manufacturing industry. Its high-precision and high-efficiency processing capabilities provide strong support for the development of manufacturing industry.
Specifications | unit | VMC650 | VMC855 | VMC1050 |
Table size | mm | 900x400 | 1000x550 | 1000x530 |
Table maximum load | kg | 350 | 500 | 600 |
X//Z axis travel | mm | 650x400x500 | 800x550x550 | 1000x500x600 |
Distance between spindle centerand column | mm | 476 | 590 | 580 |
Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 140-740 |
X//Z Max. feed speed | mm/min | 10000 | 10000 | 10000 |
X//Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/24 |
spindle speed | r/min | 8000 | 8000 | 8000 |
spindle taper | type | BT40 | BT40 | BT40 |
Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 |
X//Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 |
X//Z motor connection | Direct | Direct | Direct | |
X/Y/Z Guide way type | Line rail | Line rail | Line rail | |
T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
Tool magazine | Hat type/disc type | disc type | disc type | |
Tool capacity | 16T/16T | 24T | 24T | |
Maximum tool weight | kg | 7 | 8 | 8 |
MMax. tool length | mm | 250/300 | 300 | 250/300 |
Electric capacity | kVA | 10 | 15 | 15 |
Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 3200x2420x2400 |
Net. weight (about) | kg | 4500 | 5000 | 6000 |
