Machining center has high productivity
The high productivity of machining centers is mainly due to its many advantages....
The high productivity of machining centers is mainly due to its many advantages.
First of all, the machining center is highly automated and intelligent. The machining center adopts an advanced CNC system. Through programming and parameter setting, it can realize automatic tool changing, automatic positioning, automatic processing and other operations of the workpiece. The machining center not only reduces the tediousness of manual operations and improves production efficiency, but also ensures the stability of machining accuracy. At the same time, the intelligent system can intelligently adjust and optimize according to the processing needs of the workpiece, further improving processing efficiency.
Secondly, the machining center has strong cutting capabilities. The machining center is equipped with a high-power and high-torque spindle, as well as efficient and stable cutting tools, which can adapt to the processing needs of high-strength materials. In addition, machining centers usually adopt high-rigidity machine tool structural designs to ensure stability and accuracy during the machining process, further improving production efficiency.
Furthermore, the processing range of machining centers is wide. The machining center can process complex shapes such as flat surfaces and curved surfaces, and can also perform various processing operations such as milling, drilling, and tapping. This enables the machining center to complete multiple processes at one time, reducing the conversion and waiting time of workpieces between different machine tools, thereby improving overall production efficiency.
In addition, the flexible production of machining centers is also an important reason for its high productivity. Flexible production means that the machining center can adapt to the processing needs of different types and batches of workpieces. By replacing cutting tools and fixtures, or adjusting the parameters of the CNC system, the machining center can process different workpieces, reducing the complexity and cost of the production line, and improving production efficiency and flexibility.
To sum up, the machining center achieves high productivity through its high degree of automation and intelligence, powerful cutting capabilities, wide processing range, and flexible production. This makes machining centers widely used in the manufacturing industry, improving production efficiency, reducing costs, and enhancing competitiveness for enterprises.

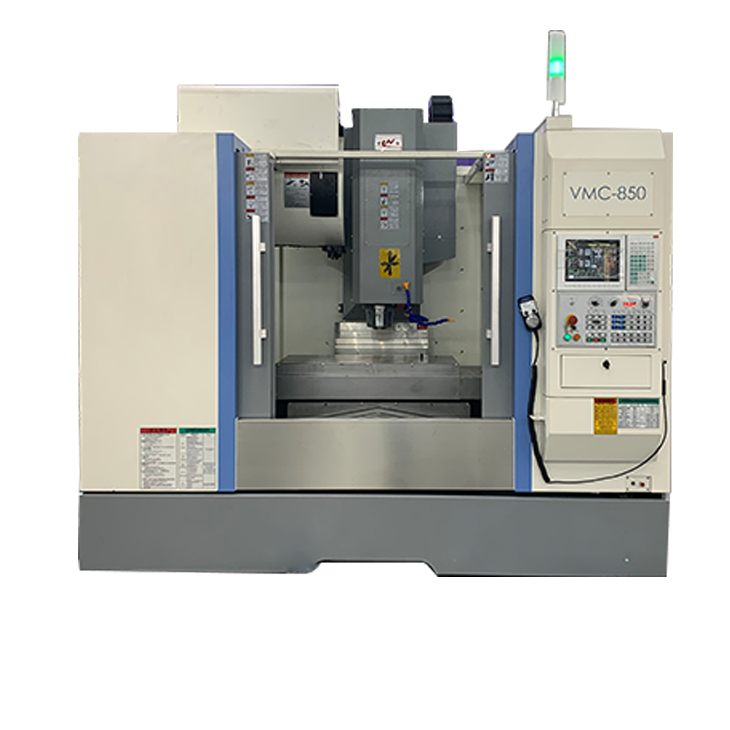

Specifications | unit | VMC650 | VMC855 | VMC1050 |
Table size | mm | 900x400 | 1000x550 | 1000x530 |
Table maximum load | kg | 350 | 500 | 600 |
X//Z axis travel | mm | 650x400x500 | 800x550x550 | 1000x500x600 |
Distance between spindle centerand column | mm | 476 | 590 | 580 |
Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 140-740 |
X//Z Max. feed speed | mm/min | 10000 | 10000 | 10000 |
X//Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/24 |
spindle speed | r/min | 8000 | 8000 | 8000 |
spindle taper | type | BT40 | BT40 | BT40 |
Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 |
X//Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 |
X//Z motor connection | Direct | Direct | Direct | |
X/Y/Z Guide way type | Line rail | Line rail | Line rail | |
T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
Tool magazine | Hat type/disc type | disc type | disc type | |
Tool capacity | 16T/16T | 24T | 24T | |
Maximum tool weight | kg | 7 | 8 | 8 |
MMax. tool length | mm | 250/300 | 300 | 250/300 |
Electric capacity | kVA | 10 | 15 | 15 |
Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 3200x2420x2400 |
Net. weight (about) | kg | 4500 | 5000 | 6000 |
