CNC machining centers operate efficiently
A machining center is an advanced CNC machine tool that can complete a variety of processing operations on a single workbench, including milling, drilling, tapping, etc....
A machining center is an advanced CNC machine tool that can complete a variety of processing operations on a single workbench, including milling, drilling, tapping, etc. Compared with traditional CNC milling machines, machining centers offer a higher degree of automation and versatility.
Here are some of the main features and functions of machining centers:
1. Multi-axis control: Machining centers are usually equipped with multiple coordinate axes, which can move and control in multiple directions.
2. Automatic tool changing system: Machining centers are usually equipped with automatic tool changing systems. The machining center can accommodate multiple tools to achieve automatic tool replacement and improve production efficiency.
3. High-speed, high-precision machining: The machining center has the capabilities of high-speed cutting and high-precision positioning. The machining center is suitable for precision machining of workpieces.
4. Multi-function processing: The machining center can complete a variety of processing procedures, including milling, drilling, tapping, boring, etc. The machining center can thereby reduce the transfer of workpieces between different machine tools and improve the integration of processing.
5. CNC system: The machining center is equipped with an advanced CNC system, which can control the movement and processing process of the machine tool through programs. Machining center operators can use computers to write processing programs to achieve flexible production operations.
6. High degree of automation: The machining center has a high degree of automation. The machining center can realize functions such as automatic loading and unloading of workpieces, automatic tool changing, automatic measurement, etc., reducing the labor intensity of operators.
7. Rigid structure: In order to ensure high-speed cutting and high-precision processing, machining centers usually adopt rigid machine tool structures to reduce vibration and deformation and ensure processing quality.
8. Flexibility and adaptability: The machining center can adapt to workpieces of different shapes and sizes. The machining center has strong processing adaptability and is suitable for small batches and diversified production needs.
Generally speaking, a machining center is a highly advanced, flexible and highly automated CNC machine tool that is widely used in aerospace, automobile manufacturing, mold processing and other industries.

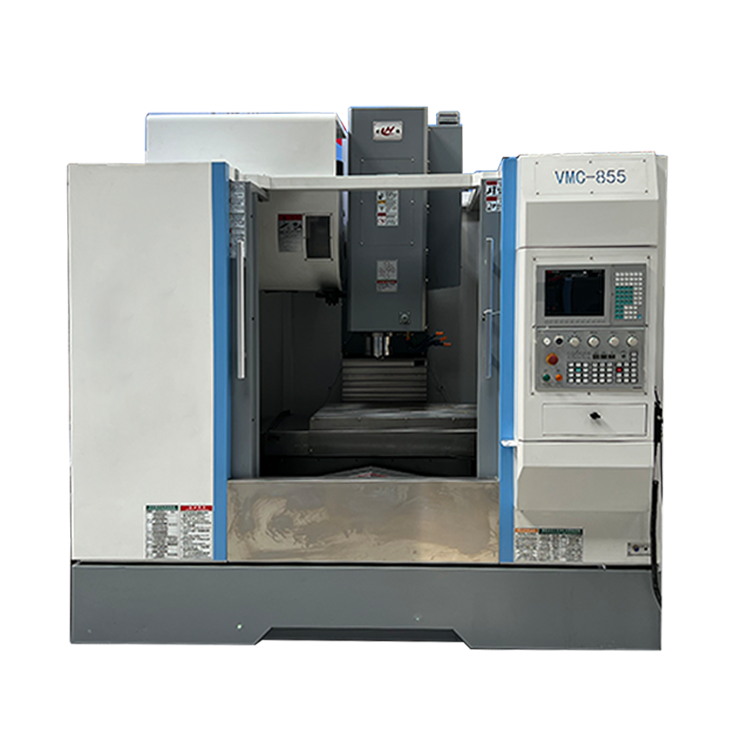

Specifications | unit | VMC650 | VMC855 | VMC1050 |
Table size | mm | 900x400 | 1000x550 | 1000x530 |
Table maximum load | kg | 350 | 500 | 600 |
X//Z axis travel | mm | 650x400x500 | 800x550x550 | 1000x500x600 |
Distance between spindle centerand column | mm | 476 | 590 | 580 |
Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 140-740 |
X//Z Max. feed speed | mm/min | 10000 | 10000 | 10000 |
X//Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/24 |
spindle speed | r/min | 8000 | 8000 | 8000 |
spindle taper | type | BT40 | BT40 | BT40 |
Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 |
X//Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 |
X//Z motor connection | Direct | Direct | Direct | |
X/Y/Z Guide way type | Line rail | Line rail | Line rail | |
T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
Tool magazine | Hat type/disc type | disc type | disc type | |
Tool capacity | 16T/16T | 24T | 24T | |
Maximum tool weight | kg | 7 | 8 | 8 |
MMax. tool length | mm | 250/300 | 300 | 250/300 |
Electric capacity | kVA | 10 | 15 | 15 |
Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 3200x2420x2400 |
Net. weight (about) | kg | 4500 | 5000 | 6000 |
