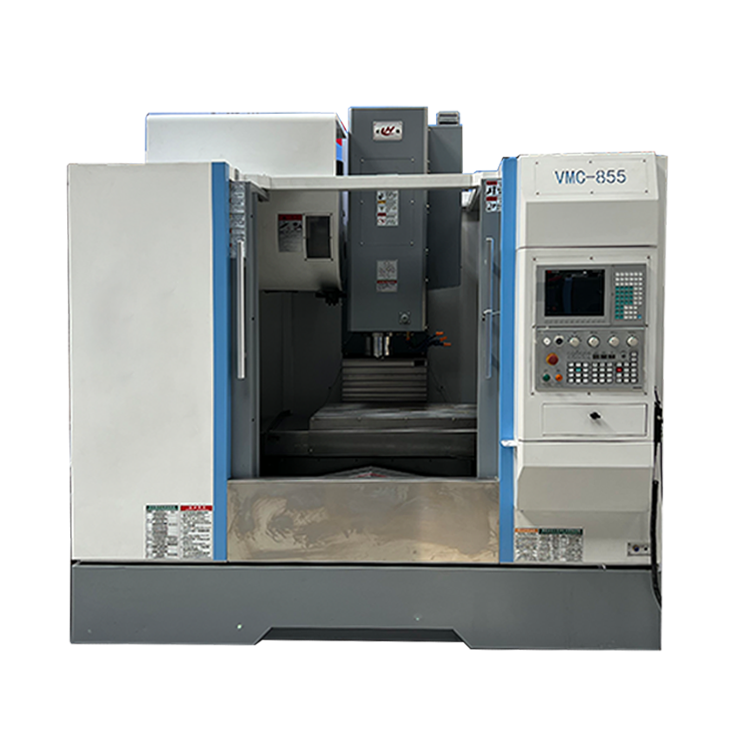

vmc cnc
VMC CNC is a powerful CNC machine tool. It has a tool magazine and can automatically change tools. It can perform a variety of processing operations on the workpiece within a certain range. The biggest difference is that the machining center has the ability to automatically exchange processing tools....
VMC CNC is a powerful CNC machine tool. It has a tool magazine and can automatically change tools. It can perform a variety of processing operations on the workpiece within a certain range. The biggest difference is that the machining center has the ability to automatically exchange processing tools. . By installing tools for different purposes on the tool magazine, the processing tools on the spindle can be changed through the automatic tool changer in one clamping, thereby realizing a variety of processing functions.
VMC CNC has high precision, high reliability, high efficiency and the ability to process complex curved workpieces, which makes it widely used in many industries such as aviation, automobiles, molds, and electronics. The advantages of vmc CNC include: a large reduction in the number of tooling, and complex tooling is not required for processing parts with complex shapes; stable processing quality, high precision, and high repeatability; high production efficiency, which can reduce the time for production preparation, machine tool adjustment, and process inspection; can It can process complex surfaces that are difficult to process with conventional methods, and can even process some processing parts that cannot be observed. However, the disadvantage of CNC machining centers is that the machine tool equipment is expensive and requires high-level maintenance personnel.
When choosing VMC CNC, you need to comprehensively consider various factors such as processing needs, budget, machine tool accuracy, and CNC system. In addition, it is also important to maintain and maintain machine tools, which helps maintain the processing accuracy of machine tools and extend their service life.
In short, VMC CNC is an indispensable and important equipment in modern manufacturing. With its powerful functions and flexibility, it provides efficient and precise solutions for processing and production in various industries.
Specifications | unit | VMC650 | VMC855 | VMC1050 |
Table size | mm | 900x400 | 1000x550 | 1000x530 |
Table maximum load | kg | 350 | 500 | 600 |
X//Z axis travel | mm | 650x400x500 | 800x550x550 | 1000x500x600 |
Distance between spindle centerand column | mm | 476 | 590 | 580 |
Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 140-740 |
X//Z Max. feed speed | mm/min | 10000 | 10000 | 10000 |
X//Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/24 |
spindle speed | r/min | 8000 | 8000 | 8000 |
spindle taper | type | BT40 | BT40 | BT40 |
Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 |
X//Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 |
X//Z motor connection | Direct | Direct | Direct | |
X/Y/Z Guide way type | Line rail | Line rail | Line rail | |
T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
Tool magazine | Hat type/disc type | disc type | disc type | |
Tool capacity | 16T/16T | 24T | 24T | |
Maximum tool weight | kg | 7 | 8 | 8 |
MMax. tool length | mm | 250/300 | 300 | 250/300 |
Electric capacity | kVA | 10 | 15 | 15 |
Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 3200x2420x2400 |
Net. weight (about) | kg | 4500 | 5000 | 6000 |
